Product Introduction
Depending on the type, specifications, or construction site, additional structural materials may be required

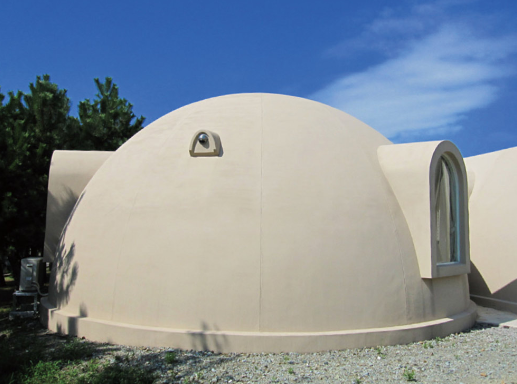

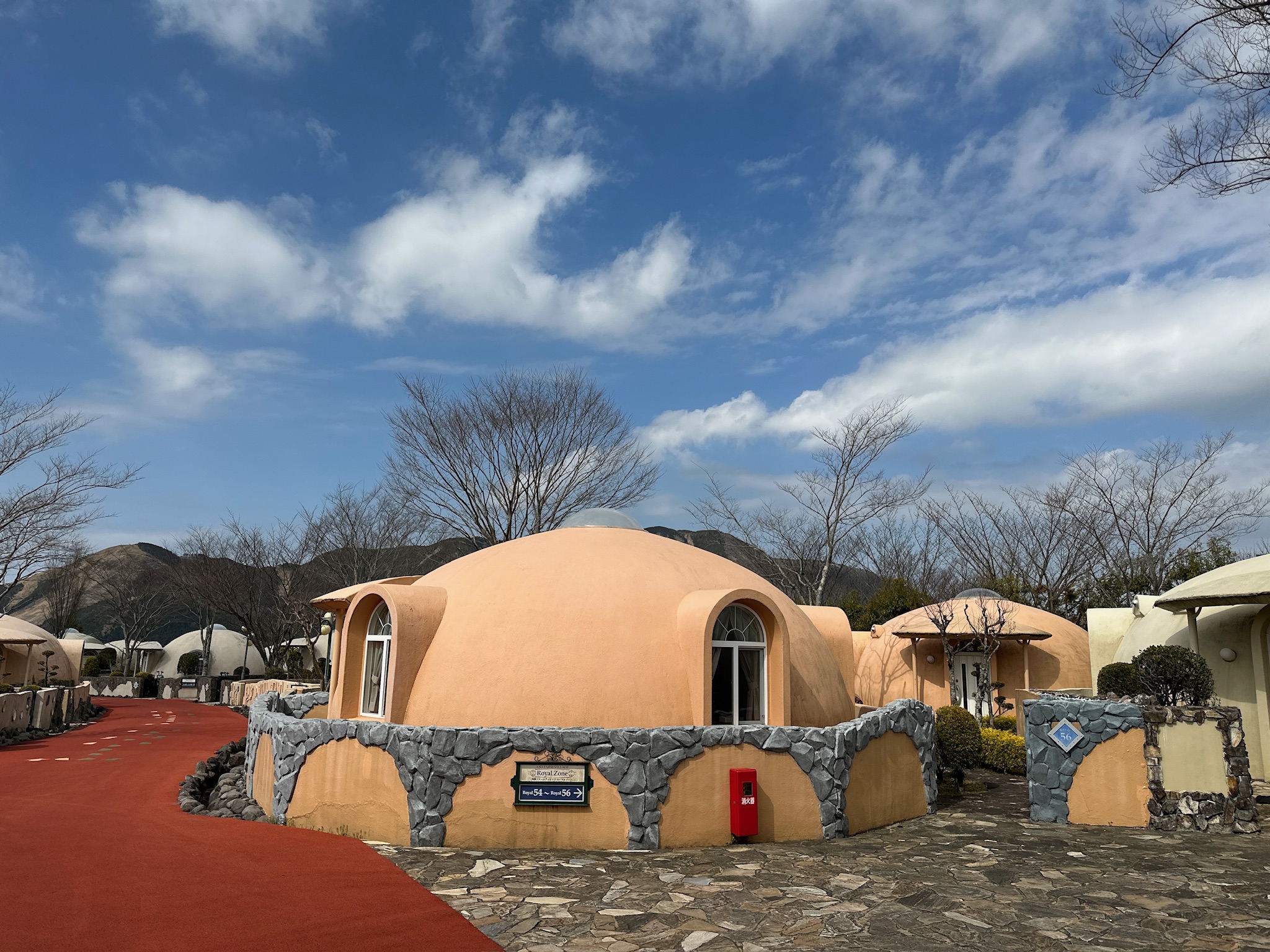

Model 7700 Dome
Diameter: 7.7 m, Height: 4.05 m, Area: 44.2 m²
Model 7700 Dome
Width: 7.7 m, Length: 8.0 m, Height: 4.05 m, Area: 45.0 m²
Long Dome No. 3
Width: 7.7 m, Length: 13.7 m, Height: 4.05 m, Area: 89.2 m²
Other Units
Triangular Unit No. 2 Width: 4.1 m, Length: 5.0 m, Height: 3.6 m, Area: 14.0 m²
Trapezoidal Unit No. 2Width: 5.7 m, Length: 5.0 m, Height: 3.73 m, Area: 19.8 m²
The Mechanism of the Dome House or How the Dome House Works

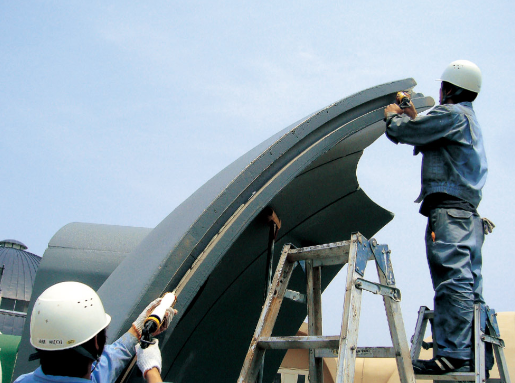

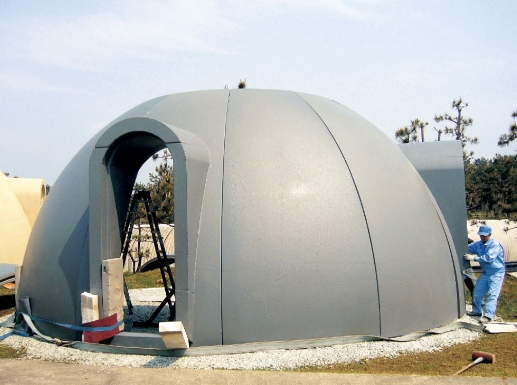

The Dome House is an assembly of pieces.

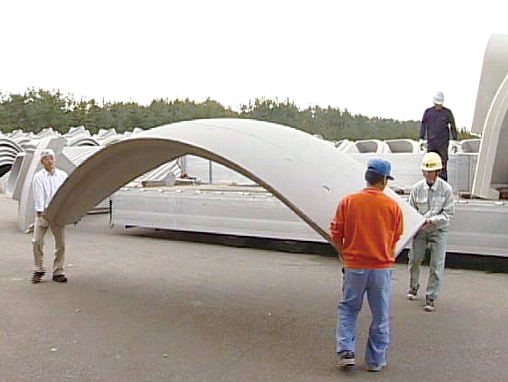

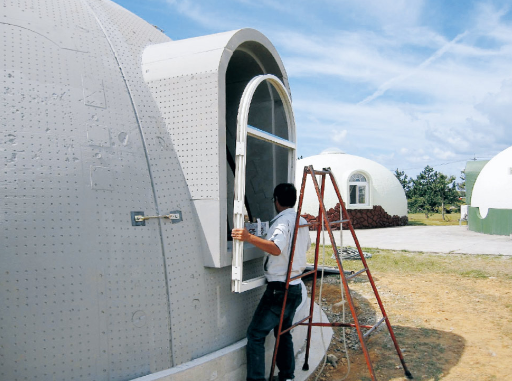

The Dome House is assembled from parts called “pieces” (each weighing about 80 kg), and by combining these pieces, various shapes can be created. The Model 7700 Arch can be extended in 2-meter increments, allowing flexibility not only in size but also in the number and placement of windows and doors.
For example, when you combine the Model 7700 Dome with two spans of arch pieces, it becomes the “Long Dome No. 2,” and when you combine three spans of arch pieces, it becomes the “Long Dome No. 3.”
One of the key features of the Dome House is its ability to create a variety of spaces tailored to your preferences, based on the intended use and land conditions.
